1*4 Molds 1500Pcs/h Paper Egg Tray Machine /Egg Tray Packaging Machine Price With Good Spare Parts Simple Small Business
Product Information
There are 2 models for customer to choose, semi automatic one without dryer, fully automatic one with dryer.
Main sections of the paper egg tray machine:

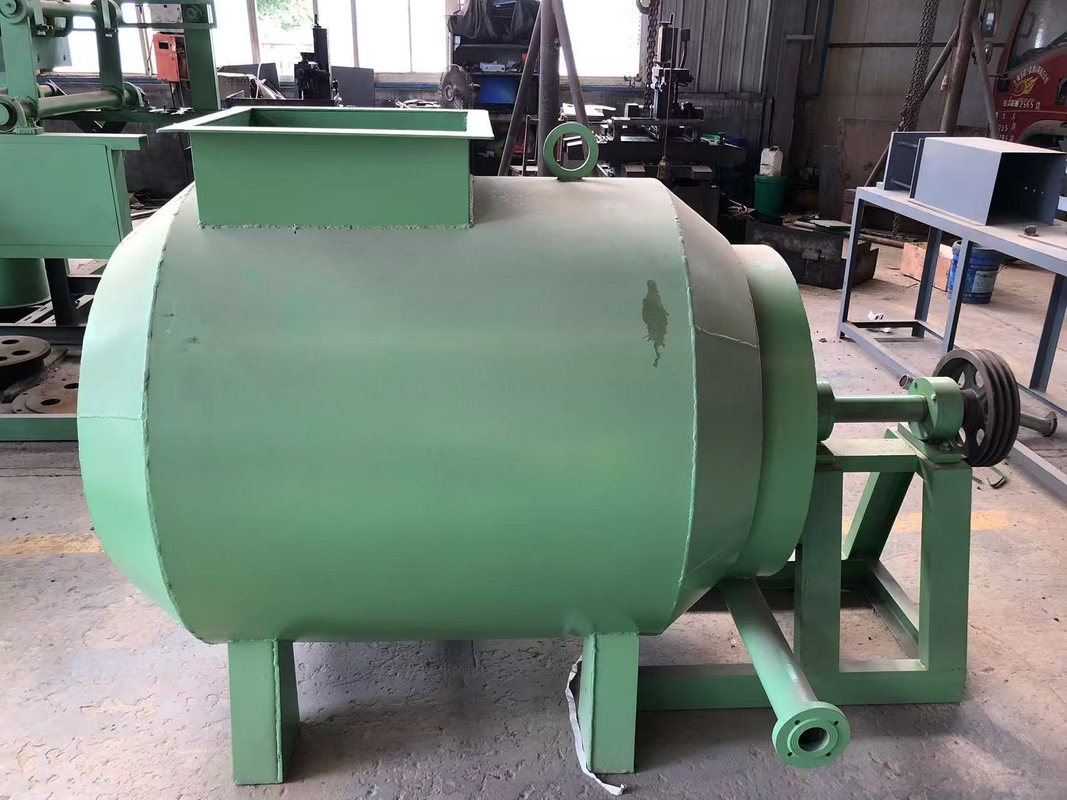

1. pulping system: including the hydrapulper, pump, water tank, pulp tank, mixer, etc..to make the wastepaper into paper pulp.

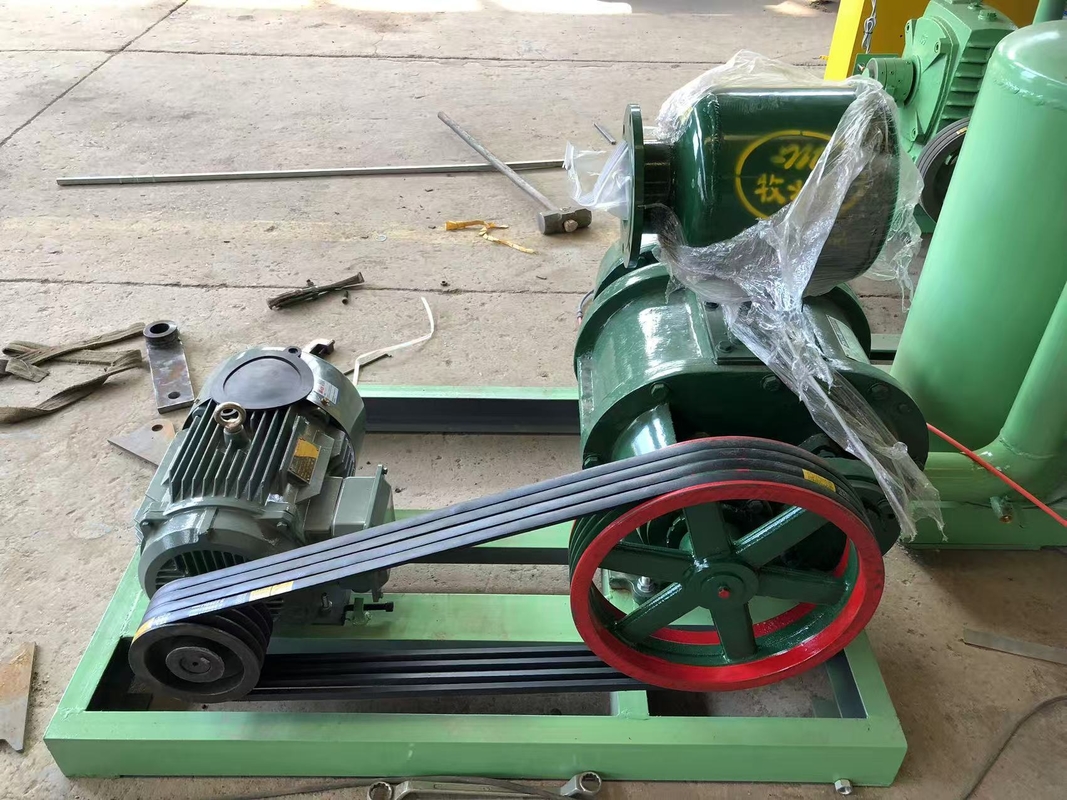

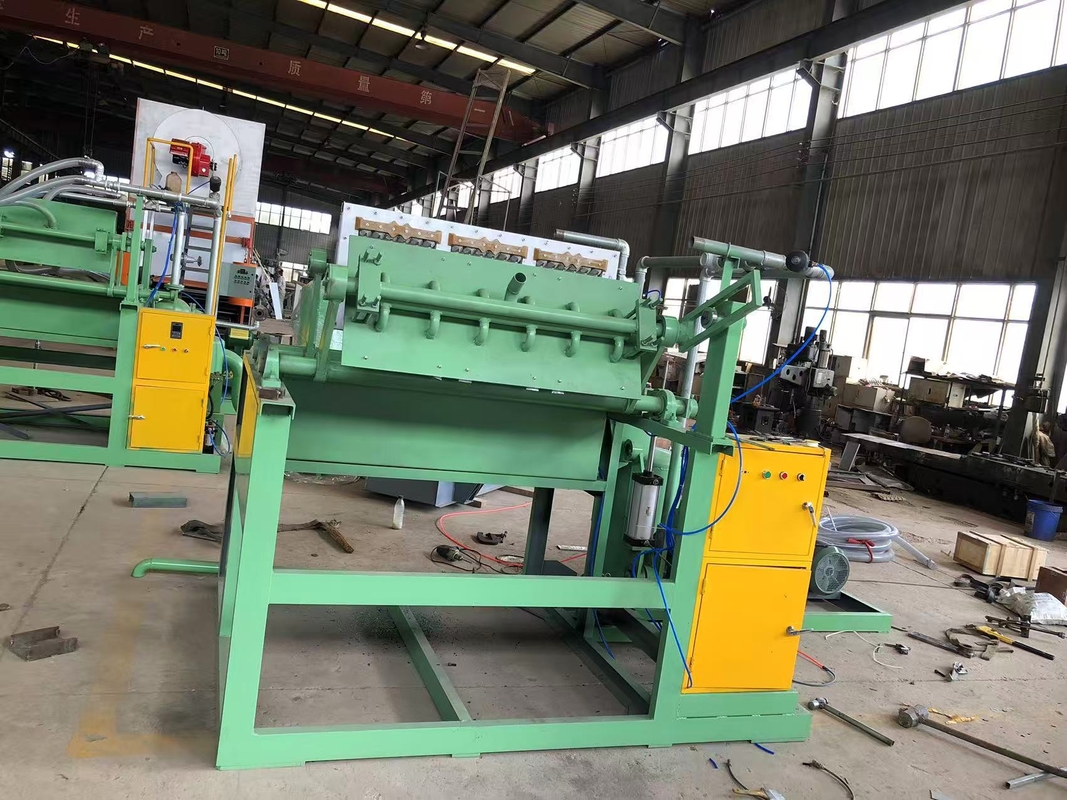

2. forming system: including the molding machine, molds, vacuum pumps, air compressor and electrical controller to make the pulp into wet trays.

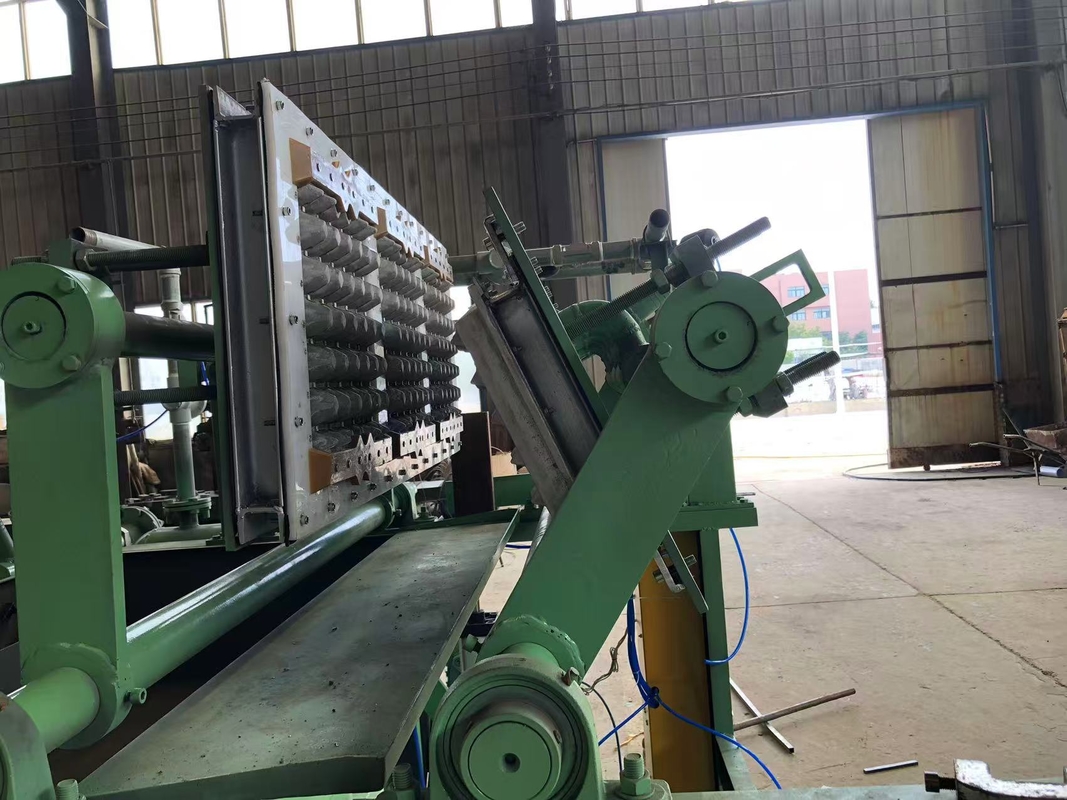

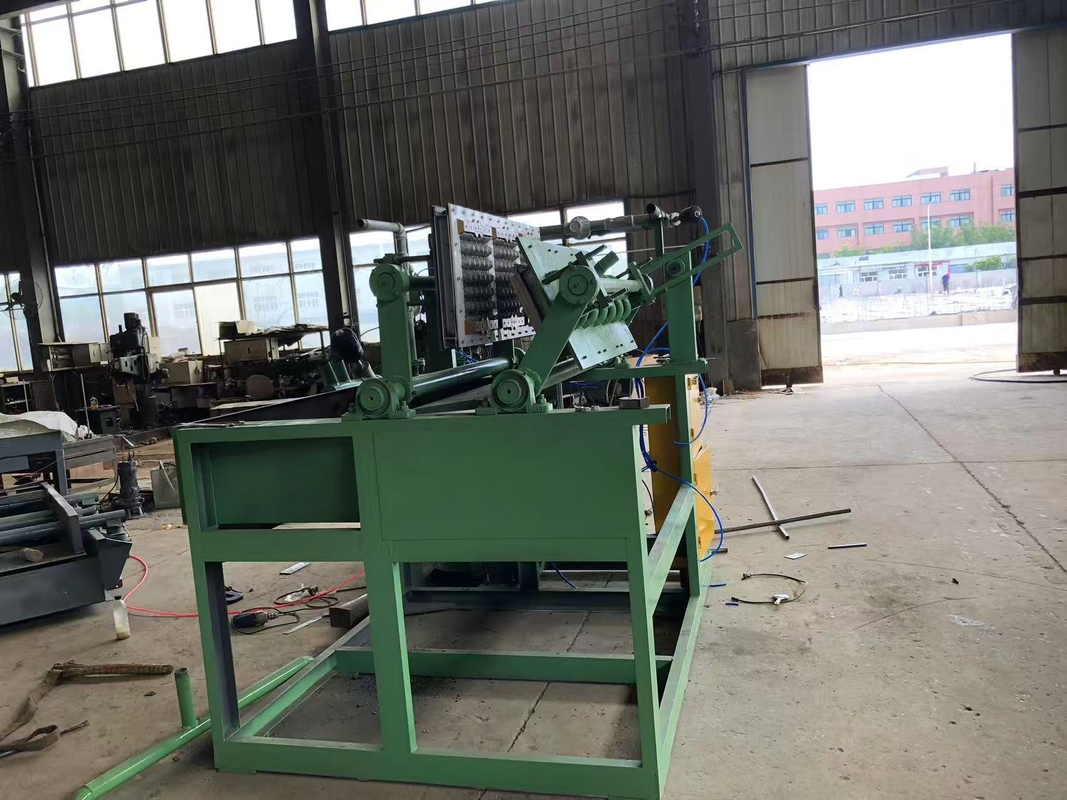

1*4 molds paper egg tray machine 1500pcs/h capacity
1*2 molds paper egg tray machine 700pcs/h capacity forming part
3. Dryer system for egg tray machine
Metalic dryer model (4 layers, 6 layers, customized as per customer's needs) for egg tray machine
Single layer brick dryer type
Heat source (fuel) for egg tray machine dryer: natural gas, diesel, liquefied petroleum gas and other combustion liquids and gases.The transmission mode adopts industrial transmission chain to drive the net plate transmission, which runs in the drying line.
Other Various capacity machine we can make
|
Model |
Capacity |
Forming machine |
Drying system |
Workshop space |
Rated power |
|
WY-1500S |
1500-2000pcs/hr |
3molds *4faces |
Single-Layer Metal |
55m*10m*6m |
130KW |
|
Rotary type |
|||||
|
WY-1500M |
1500-2000pcs/hr |
3molds *4faces |
4 Layers |
35m*10m*6m |
120KW |
|
Rotary type |
Metal |
||||
|
WY-2000S |
2000-2500pcs/hr |
4molds *4faces |
Single-Layer Metal |
60m*10m*6m |
165KW |
|
Rotary type |
|||||
|
WY-2000M |
2000-2500pcs/hr |
4molds *4faces |
4 Layers |
40m*10m*6m |
145KW |
|
Rotary type |
Metal |
||||
|
WY-3000S |
3000pcs/hr |
3molds *8faces |
Single-Layer Metal |
65m*15m*6m |
209KW |
|
Rotary type |
|||||
|
WY-3000M |
3000pcs/hr |
3molds *8faces |
4Layers |
50m*15m*6m |
189KW |
|
Rotary type |
Metal |
||||
|
WY-4000S |
4000pcs/hr |
4molds *8faces |
Single-Layer Metal |
75m*15m*6m |
239KW |
|
Rotary type |
|||||
|
WY-4000M |
4000pcs/hr |
4molds *8faces |
4 Layers |
50m*15m*6m |
223KW |
|
Rotary type |
Metal |
||||
|
WY-5000S |
5000pcs/hr |
5molds *8faces |
Single-Layer Metal |
70m*15m*6m |
298KW |
|
Rotary type |
|||||
|
WY-5000M |
5000pcs/hr |
5molds *8faces |
4 Layers |
55m*15m*6m |
273KW |
|
Rotary type |
Metal |
||||
|
WY-6000S |
6000pcs/hr |
6molds *8faces |
Single-Layer Metal |
80m*15m*6m |
365KW |
|
Rotary type |
|||||
|
WY-6000M |
6000pcs/hr |
6molds *8faces |
4 Layers |
55m*15m*6m |
326KW |
|
Rotary type |
Metal |
1500pcs/h capacity 1*4 molds egg tray machine technical data
|
Technical Parameters |
||
|
Egg Tray mould quantity |
4pcs |
Machine volume |
|
Raw material |
Waste paper |
About20ft*1
|
|
Output for egg tray |
1300-1500pcs/hour |
|
|
Net weight per piece (gram) |
70g-75g |
|
|
The volume of waste paper consumed |
110kg / hour |
|
|
The volume of water consumed |
0.3ton / hour |
|
|
Machine Weight |
4 tons around |
|
|
Egg tray Size |
295mm*295mm 30eggs |
|
|
Installed power |
41kw |
|
|
Motor working efficiency |
70% |
|
|
Dimensions required to install the machine |
More than L10m*W5m*H3m |
|
|
Remarks: 1.Usually, debugging work will be done before shipment. 2. We will offer online installation support for buyers.Either by video or by phone. 3. Buyer needs to build underground type 1 water and 2 pulp pools with dimensions of 1.5mL*1.5mW*1.5m(deep) |
||
Payment Terms
|
Delivery Time: 45 working days after getting payment Payment Terms: 40% T/T prepayment in advance. 60% before delivery by T/T. |
|
|
Warranty time |
1year after the Egg tray machine received. |
|
Terms of delivery |
EXW Jinan, China |
|
Time of payment |
When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery. |
