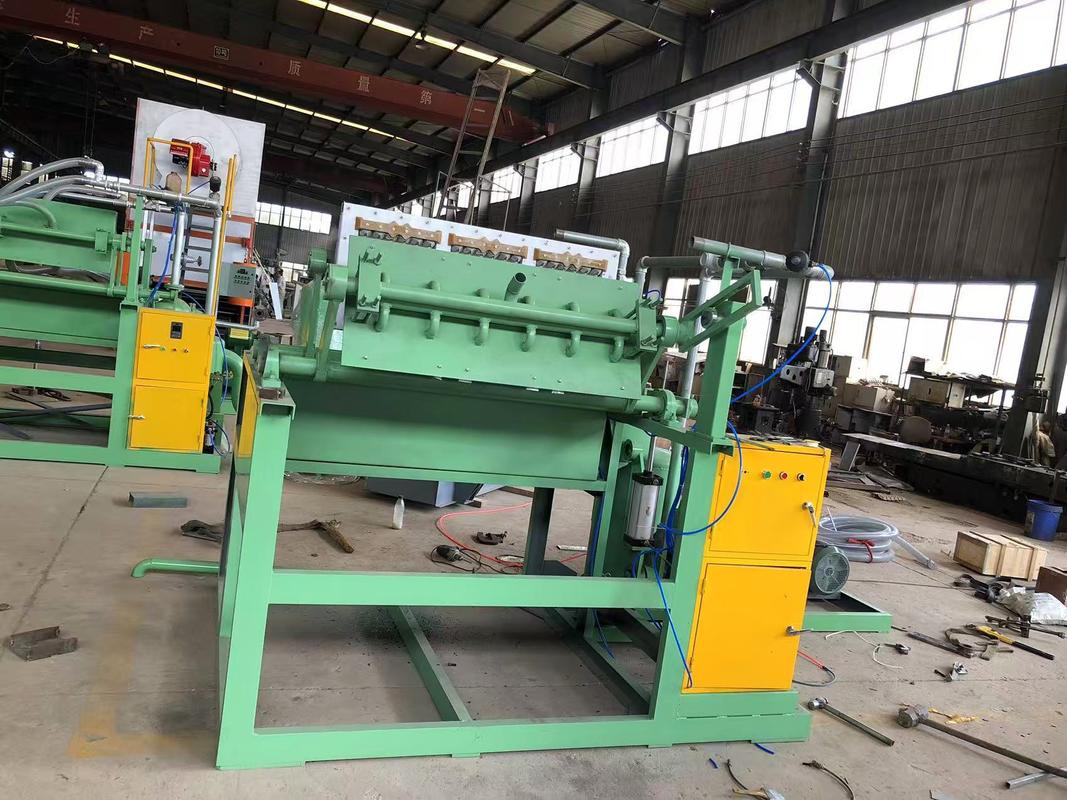

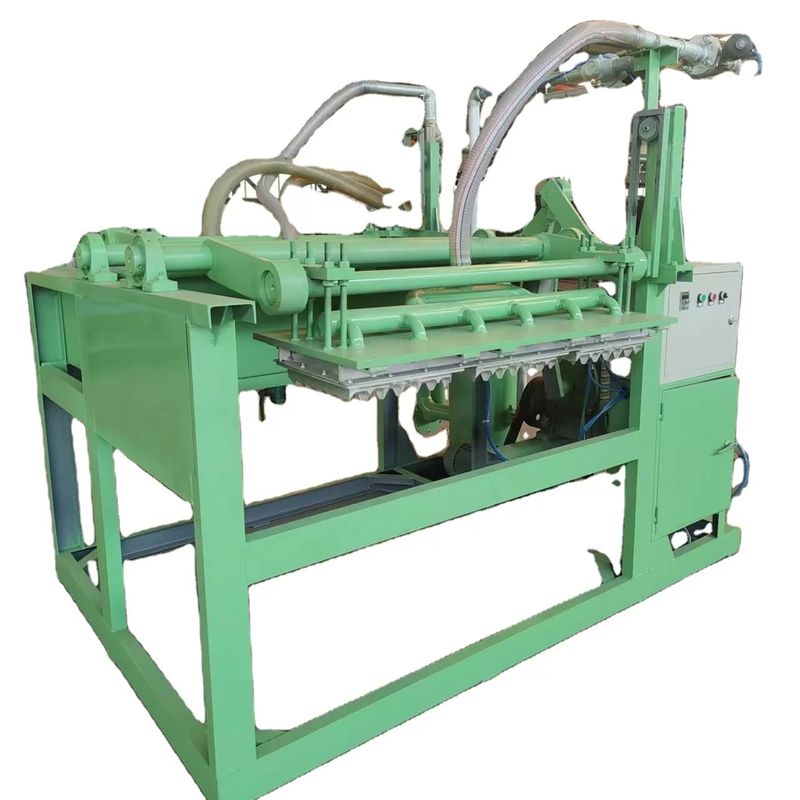

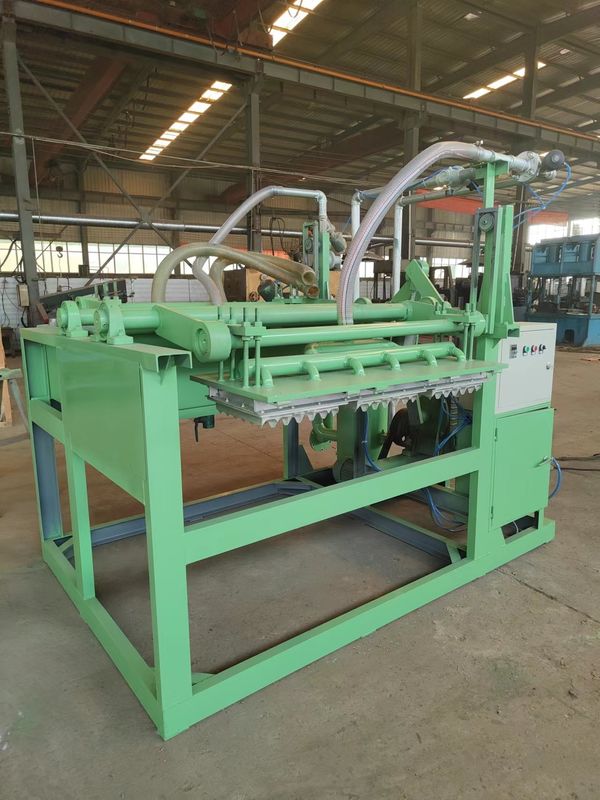

1*3 Molds Simple Paper Egg Tray Machine /Pulp Molding Machine Price Easy Operation Small Business Idea 1000Pcs/h
Product Information
It is semi automatic one without dryer. Also can choose fully automatic type with dryer if have enough budget.
Main sections of the paper egg tray machine:
1. pulping system: including the hydrapulper, water pump, pulp pump, water tank, pulp tank, mixer, etc..to make the wastepaper into paper pulp.
2. forming system: including the molding machine, molds, vacuum pumps, air compressor and electrical controller to make the pulp into wet trays.

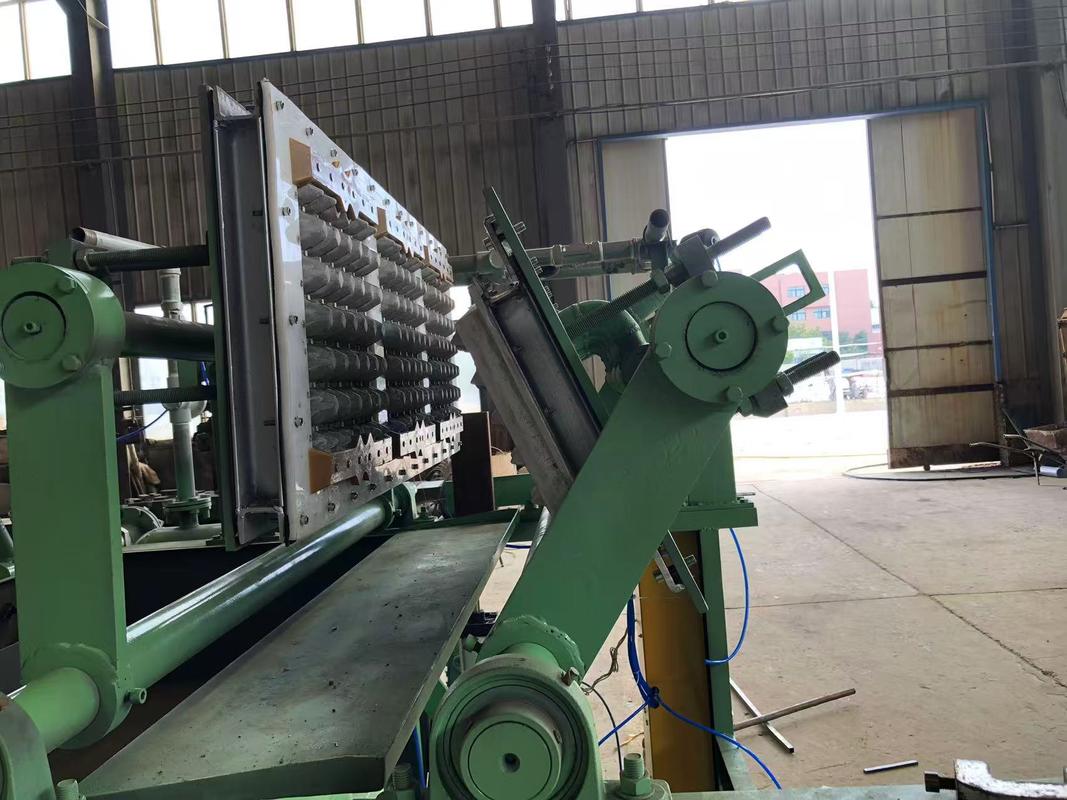

1*3 molds paper egg tray machine 1000pcs/h capacity forming part

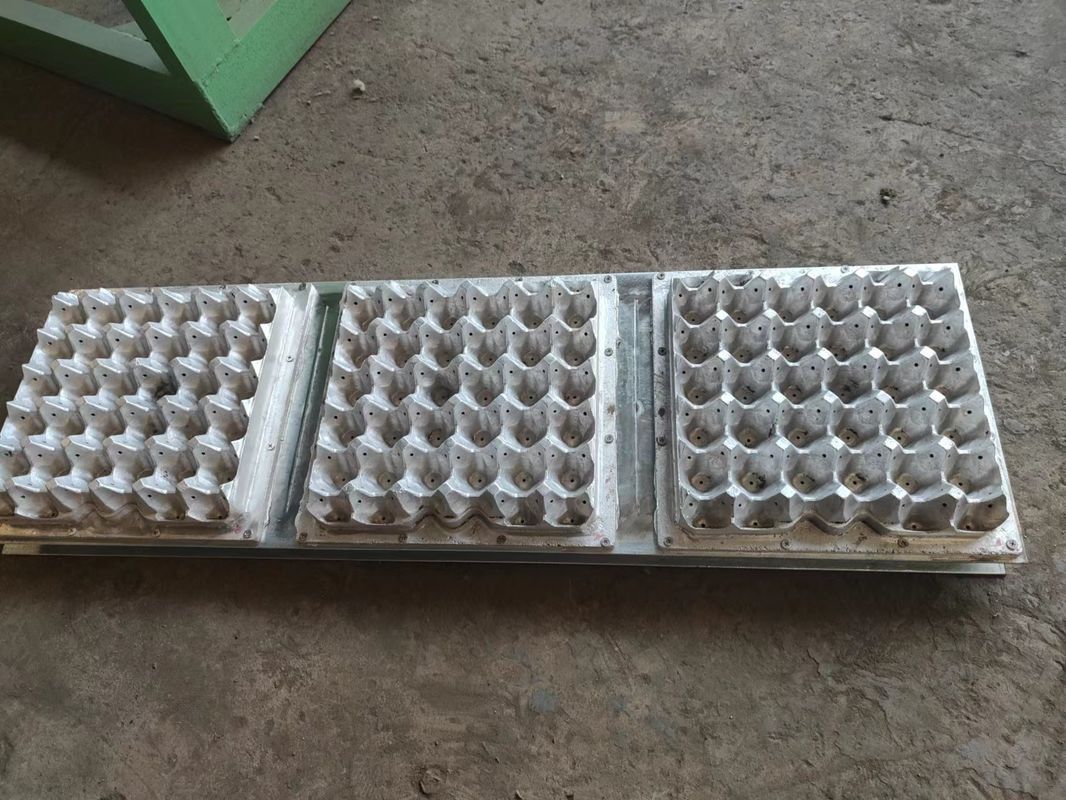

Transferring molds are aluminum material for the egg tray machine
Other type egg tray machine we made

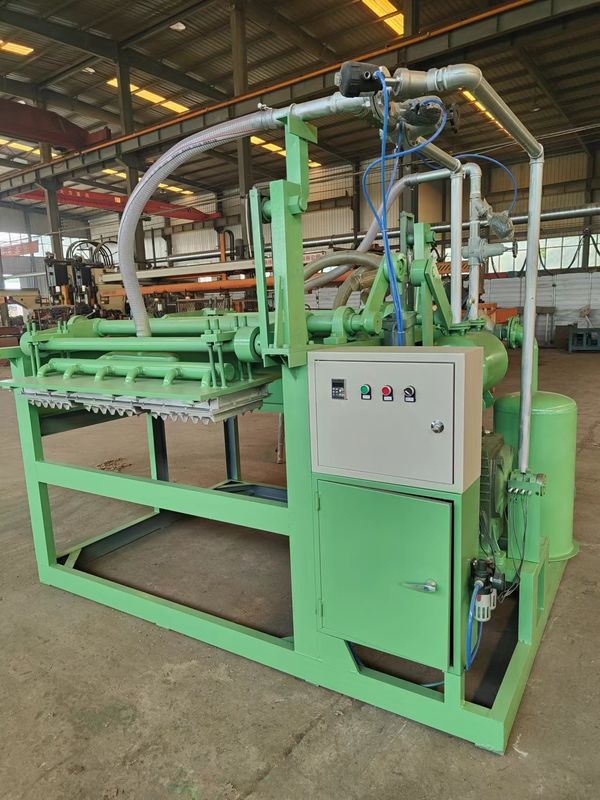

4 molds paper egg tray machine forming system 1300pcs/h capacity
Other Various big capacity egg tray machine we can make
|
Model |
Capacity |
Forming machine |
Drying system |
Workshop space |
Rated power |
|
WY-1500S |
1500-2000pcs/hr |
3molds *4faces |
Single-Layer Metal |
55m*10m*6m |
130KW |
|
Rotary type |
|||||
|
WY-1500M |
1500-2000pcs/hr |
3molds *4faces |
4 Layers |
35m*10m*6m |
120KW |
|
Rotary type |
Metal |
||||
|
WY-2000S |
2000-2500pcs/hr |
4molds *4faces |
Single-Layer Metal |
60m*10m*6m |
165KW |
|
Rotary type |
|||||
|
WY-2000M |
2000-2500pcs/hr |
4molds *4faces |
4 Layers |
40m*10m*6m |
145KW |
|
Rotary type |
Metal |
||||
|
WY-3000S |
3000pcs/hr |
3molds *8faces |
Single-Layer Metal |
65m*15m*6m |
209KW |
|
Rotary type |
|||||
|
WY-3000M |
3000pcs/hr |
3molds *8faces |
4Layers |
50m*15m*6m |
189KW |
|
Rotary type |
Metal |
||||
|
WY-4000S |
4000pcs/hr |
4molds *8faces |
Single-Layer Metal |
75m*15m*6m |
239KW |
|
Rotary type |
|||||
|
WY-4000M |
4000pcs/hr |
4molds *8faces |
4 Layers |
50m*15m*6m |
223KW |
|
Rotary type |
Metal |
||||
|
WY-5000S |
5000pcs/hr |
5molds *8faces |
Single-Layer Metal |
70m*15m*6m |
298KW |
|
Rotary type |
|||||
|
WY-5000M |
5000pcs/hr |
5molds *8faces |
4 Layers |
55m*15m*6m |
273KW |
|
Rotary type |
Metal |
||||
|
WY-6000S |
6000pcs/hr |
6molds *8faces |
Single-Layer Metal |
80m*15m*6m |
365KW |
|
Rotary type |
|||||
|
WY-6000M |
6000pcs/hr |
6molds *8faces |
4 Layers |
55m*15m*6m |
326KW |
|
Rotary type |
Metal |
1000pcs/h capacity 1*3 molds egg tray machine technical data
|
Technical Parameters |
||
|
Egg Tray mould quantity |
1*3pcs |
Machine volume |
|
Raw material |
Waste paper |
About20GP*1
|
|
Output for egg tray |
1000pcs/hour |
|
|
Net weight per piece (gram) |
70g-75g |
|
|
The volume of waste paper consumed |
75kg / hour |
|
|
The volume of water consumed |
0.22ton / hour |
|
|
Machine Weight |
2.5tons around |
|
|
Egg tray Size |
295mm*295mm 30eggs |
|
|
Installed power |
30.5kw |
|
|
Motor working efficiency |
70% |
|
|
Dimensions required to install the machine |
More than L6m*W5m*H3m |
|
|
Remarks: 1.Usually, debugging work will be done before shipment. 2.We will offer online installation support for buyers.Either by video or by phone. 3.Buyer needs to build underground type 1 water and 1 pulp pool with dimensions of 1.5mL*1.5mW*1.5m(deep) |
||
Payment Terms
|
Delivery Time: 25 working days after getting payment Payment Terms: 40% T/T prepayment in advance. 60% before delivery by T/T. |
|
|
Warranty time |
1year after the Egg tray machine received. |
|
Terms of delivery |
EXW Jinan, China |
|
Time of payment |
When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery. |
Our Services
(1)Technical consultation ;
(2)Detailed design of customer workshop ;
(3)Installing and testing the whole production line before shipment;
(4)Training engineers and workers;
(5)Supplying spare part for long time;
(6) Online services anytime.
