1300-1500pcs Per Hour Egg Carton Making Machine Reciprocating Forming Type For Production Of Egg Trays Apple Trays Shoes Trays Coffee Cup Holders Tray Egg Tray Machine
Egg Tray Production Line /Egg Tray Machine
This is the Reciprocating Forming Type paper egg tray machine.
It is a good choice for small and middle sized companies and individuals investing. It is used for making any kind of Egg Trays, Apple Trays, Shoes Trays, Nursery Trays, Wine Trays and other Industrial Packages Trays etc..
Working theory
For pulp molded 30-cell egg trays : first the worker will weight the raw material and put them into the conveyor. Then the pulping ,forming, drying and stacking will be finished automatically. After drying, the finished products will be packed by workers.
A hot pressing section should be added in the production of pulp molded egg box/carton(6-cell,10-cell,12-cell,6+6-cell,15-cell),fruit tray and cup carrier after drying because of shrinking.
The egg box/carton can be labeled or printed after hot pressing. These processes could be finished manually or automatically.

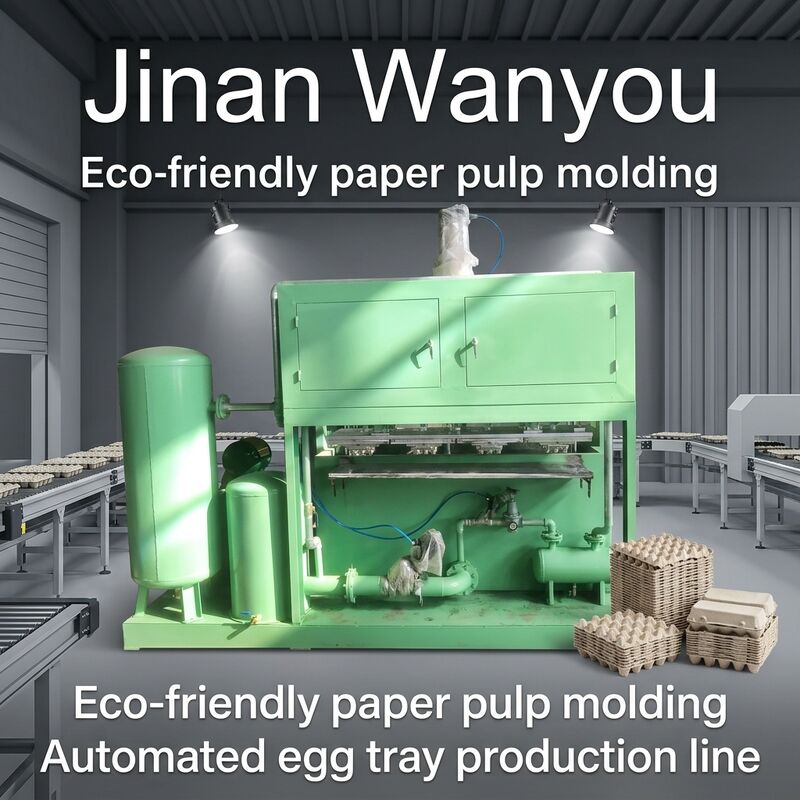

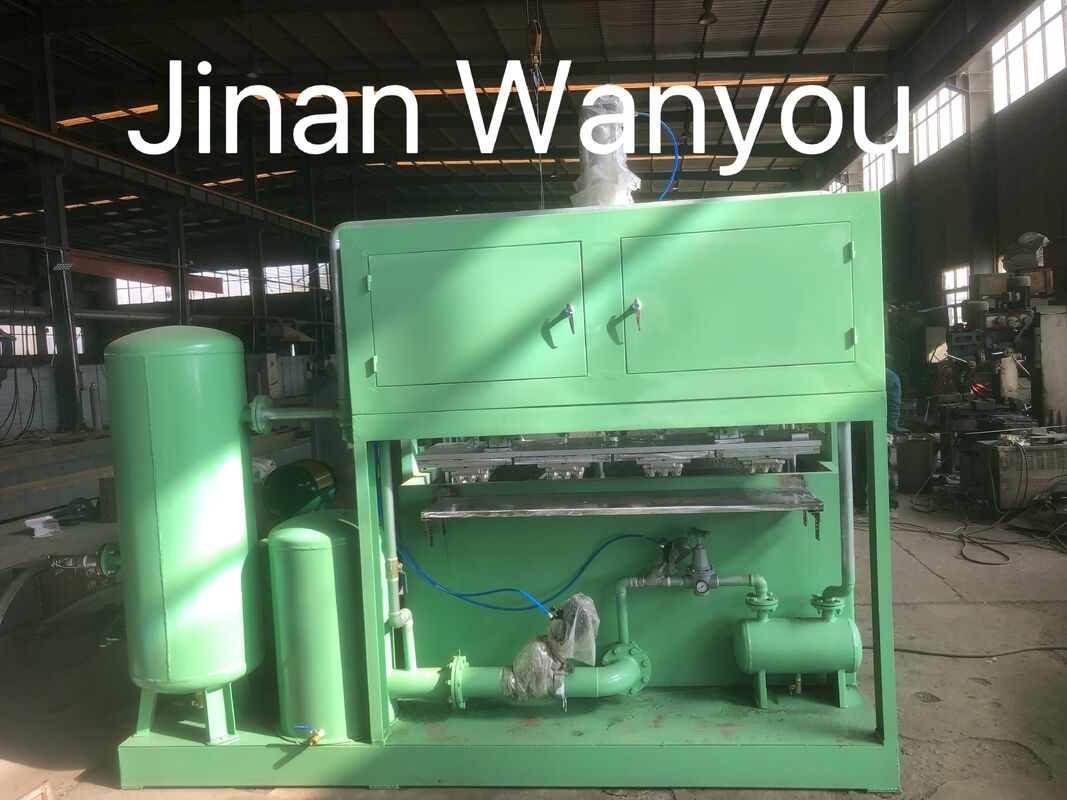

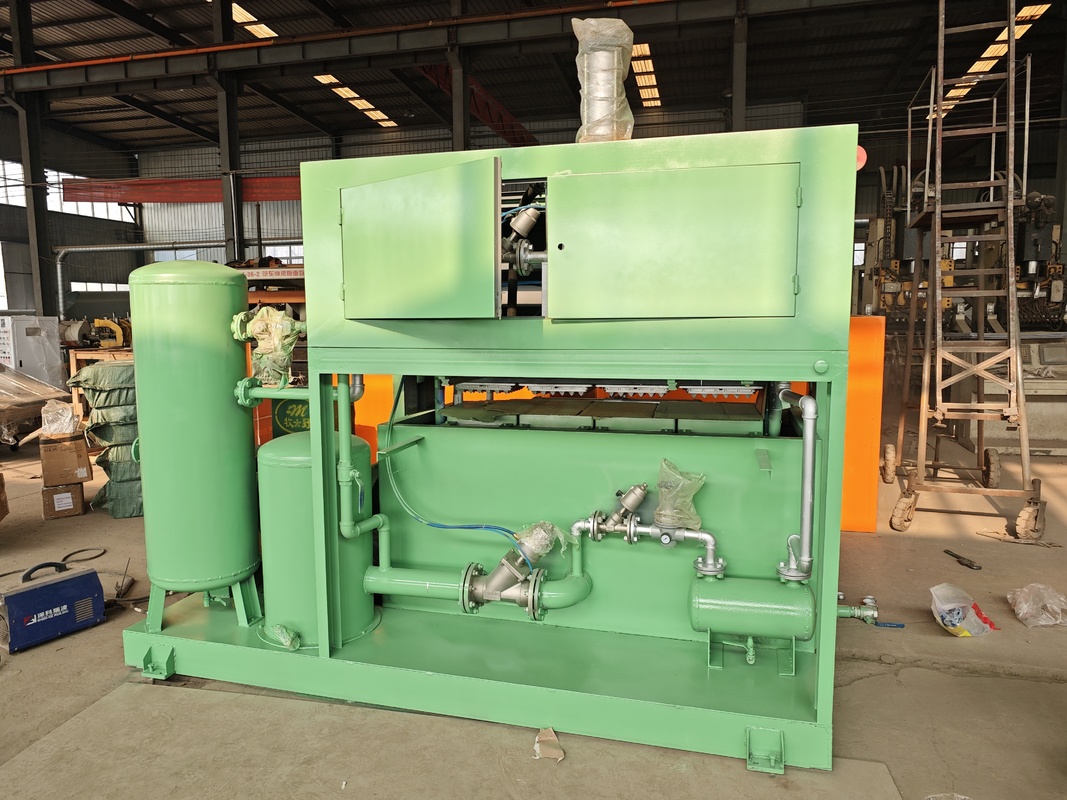

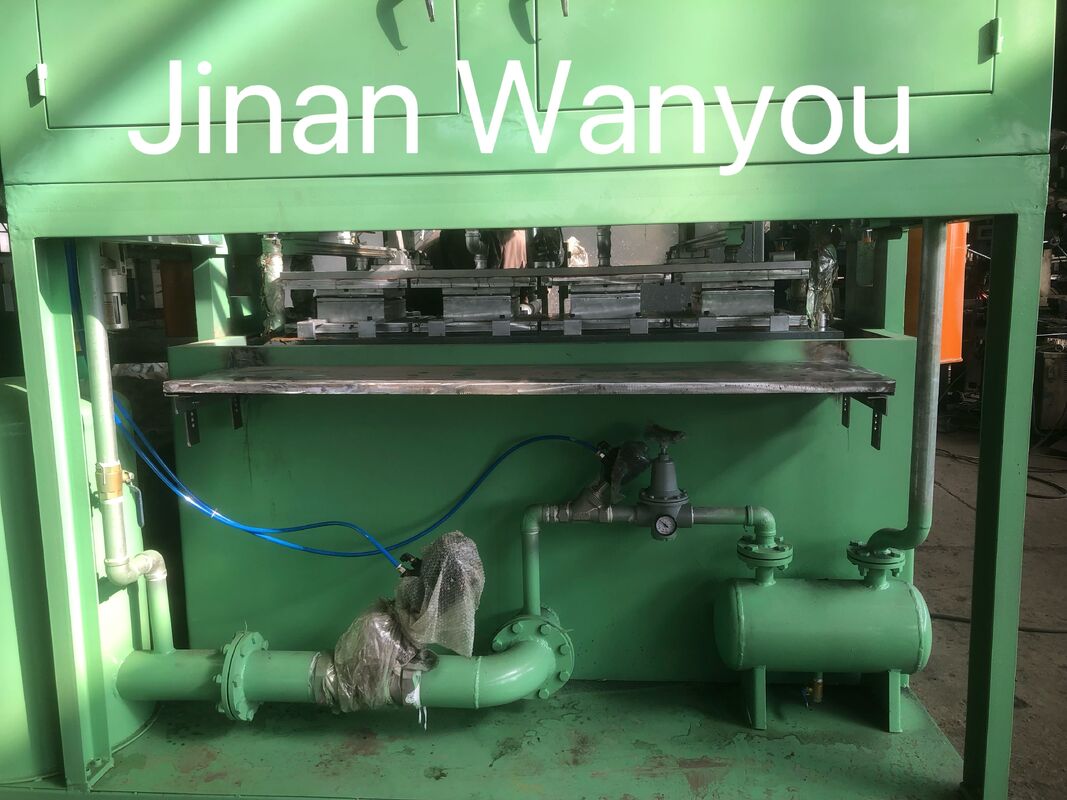

Machine show
Technical data
| Egg Tray mould quantity | 4pcs | |
| Raw material | Waste paper | |
| Capacity of Egg Trays | 1500pcs/hour | |
| Net weight per piece (gram) | 70g-75g | |
| Machine Weight | 5-20tons | |
| Egg tray Size | 295mm*295mm 30eggs | |
| Area of workshop needed (Around) | Without dryer | More than 240㎡ | |
| Capacity of Power Requirement | Without dryer | 40KW | |
| Machine size | Without dryer | 8m*2m*2.2m | |
| Size of container | Without dryer | 40ft*1 | |
Payment and delivery
| Trade terms | FOB Qingdao or EXW Factory | ||||
| Delivery time | About 35 working days after receiving the deposit. | ||||
| Payment term | BY T/T 30%DEPOSIT+70%BALANCE. | ||||
| Time of payment | When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery. | ||||
| Warranty time | Two years after the Egg tray machine received. | ||||
| TERMS OF DELIVERY | FOB Qingdao Port, China | ||||
| Package | In container | ||||
Our machine can provide customer 1 year warranty, which guarantee our machine quality.
Choose us, you will not regrate. Choose us, you will earn the best profit. Choose us, you will get the best quality machine.
Welcome to contact us.
Various end product can be made by this reciprocating forming type paper egg carton making machine/egg tray machine
