원래 장소:
Jinan, Shandong, 중국
브랜드 이름:
Wanyou
모델 번호:
ZSJ-700

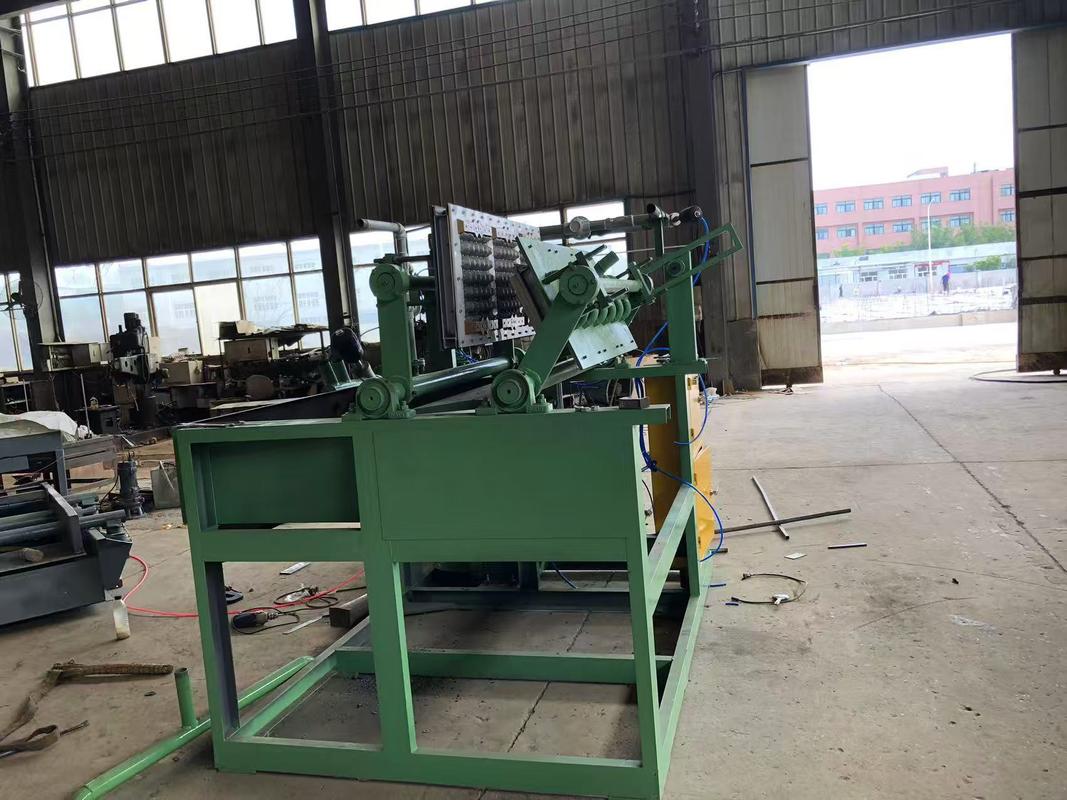

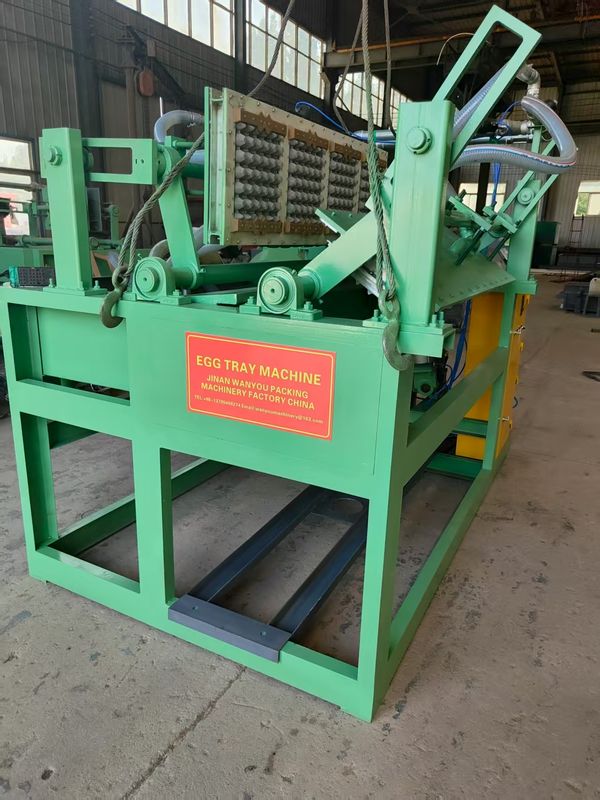

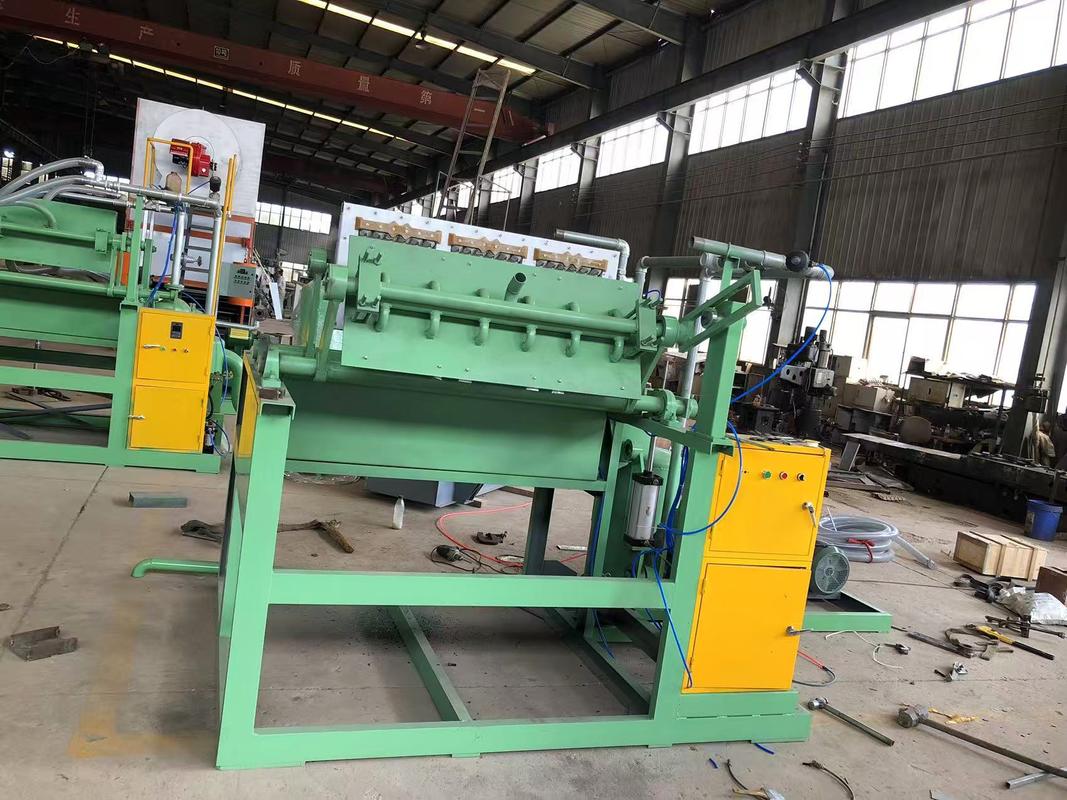

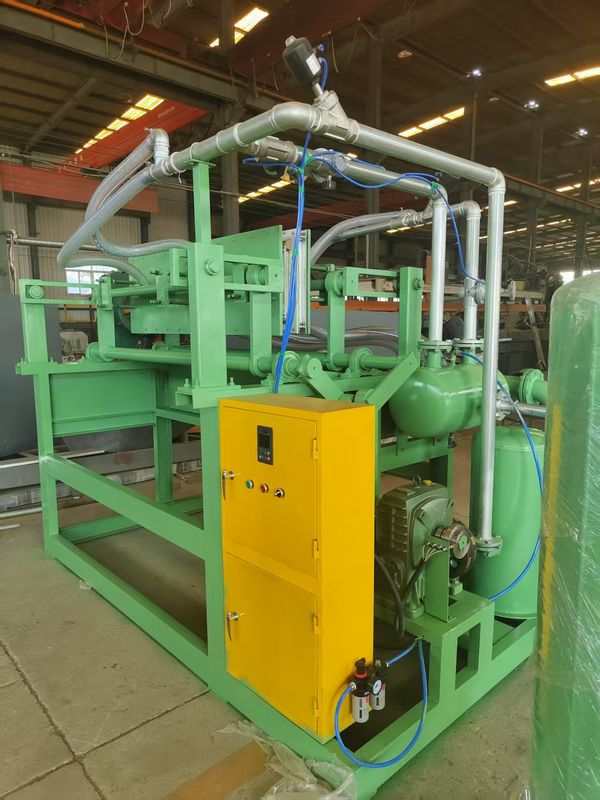

700-1500 pcs per hour Simple Structure Paper Egg Tray Machine PLC Controlled Semiautomatic Egg Tray Machine for Small Business Paper Product Making Machinery
| Product Type | Egg Tray Machine |
| Processing Type | Pulp Molding Machine |
| After-sales Service | Provided Engineers available to service machinery overseas |
| Application | egg tray,fruit tray,bottle tray |
| Fuel | Coal, Natural Gas, Disel, LPG and so on |
| Keyword | egg box/tray machine |
Egg tray machine is composed of the following sections:
1. Egg box/Tray Pulping System:
Pulping System
1. Put the raw material and water into the hydraulic pulper, you will get the paper pulp after mixed 10-20 minutes.
2. Pulp pump will transfer the finished paper pulp into the slurry pool.
3. The pulp pond beater will mix the pulp concentration.
4. The pulp pump will transfer the pulp into forming machine.
2. Egg carton/Tray Molding System :

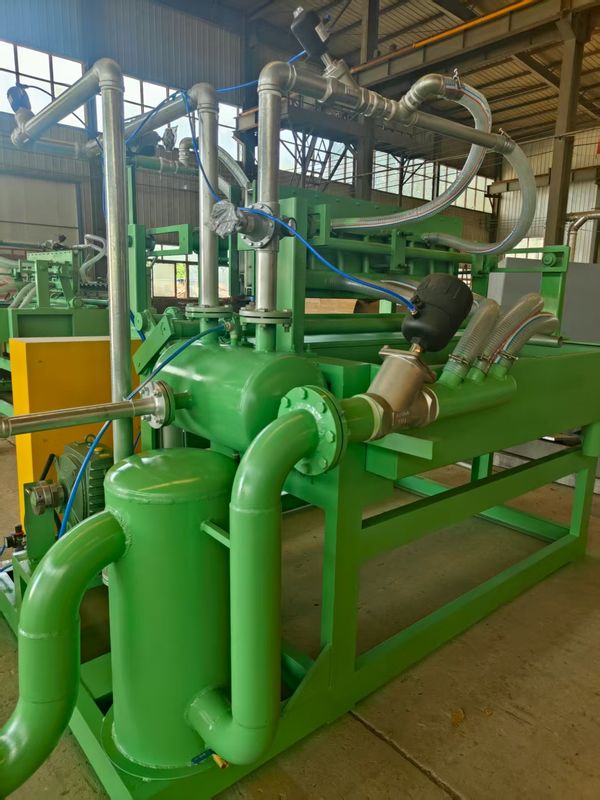

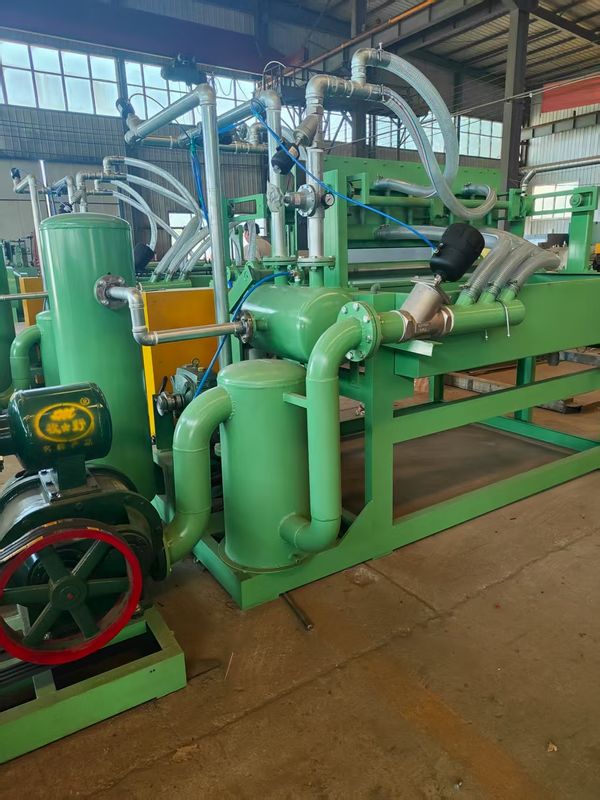

1. The molding machine is to absorb the pulp to the molding mold, absorb the pulp to the molding mold through the suction of the vacuum system to absorb the excess water into the gas-water separation tank, and then pump the water to the tank for storage.
2. The molding mold absorbs the pulp and then forms it. and then the transfer mold takes out the finished product and sends it to the drying tray inside the dryer oven.
1*2molds paper egg tray machine without dryer 700pcs/h capacity
1*3 molds paper egg tray/carton machine 1000pcs/h capacity
1*4 molds paper egg tray machine 1500pcs/h capacity
Many capacity egg box machine can be choosen:
|
Egg Tray Mold Quantity |
4pcs |
|
Raw material |
Waste paper |
|
Egg tray Capacity |
1300pcs/hour |
|
Net weight per piece (gram) |
70g-75g |
|
Waste paper consumption |
530kg/hour |
|
Water Consumption |
0.15on/hour |
|
Natural Gas Consumption of Dryer |
45cbm/h |
|
Worker requirement |
2-3workers |
|
Machine Length |
8m-38m |
|
Machine weight |
8-32tons |
Payment and delivery
| Trade terms | FOB Qingdao or EXW Factory | ||||
| Delivery time | About 30 working days after receiving the deposit. | ||||
| Payment term | BY T/T 40%DEPOSIT+60%BALANCE or 40% TT Deposit + 70% LC | ||||
| Time of payment | When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery. | ||||
| Warranty time | Two years after the Egg tray machine received. | ||||
| TERMS OF DELIVERY | FOB Qingdao Port, China | ||||
| Package | In container | ||||
| Installation | |||||
| 1.Usually, all installation and debugging work will be done before shipment. 2. If the buyer wants to Install the debugging term, the seller will arrange one people instructs the installment(all travel ticket and hotel charge by buyer and egineer charge USD100/day ) | |||||
End productof egg tray machine/egg carton making machine:
Welcome to contact us!
Cindy: +86 15665703348
